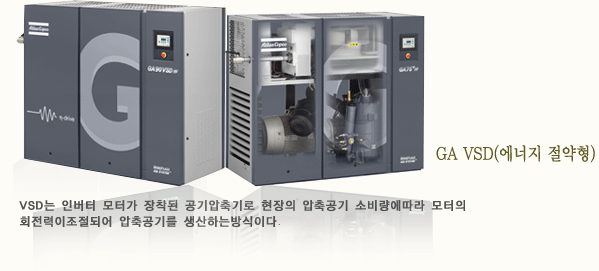

> 제품소개 > 에너지 절약형

전력비 절감(35-45%)
일정한 압력유지
사용압력 (4-13 BAR)
전폐형,고효율 모터 사용
SIEMENS 인버터 사용
FF TYPE (냉동식 드라이어 내장형) 선택사양
Compressor
type		 Working pressure Installed Motor Noise level(2) Weght
pack Full Feature pack/Full Feature     pack Full Feature
bar(e) psig bar(e) psig l/S ㎥/min cfm kW hp dB(A) kg lb kg lb
*GA VSD 60Hz
GA132VSD-125 3.5 51 3.5 51 97 - 539 5.8 - 32.3 206 -1142 132 175 68 3930 8464 4200 9346
6.9 100 6.9 100 93 - 459 5.6 - 27.5 197 - 973 132 175 68 3930 8464 4200 9346
8.6 125 8.6 125 90 -420 5.4 - 25.2 191 - 890 132 175 68 3930 8464 4200 9346
GA132VSD- 150 6 87 6 87 94 - 481 5.4 - 25.2 191 - 890 132 175 68 3930 8646 4248 9346
8.6 125 8.6 125 90 - 420 5.4 - 25.2 191 - 890 132 175 68 3930 8646 4248 9346
10.4 151 10.4 151 87 - 383 5.2 - 23.0 184 - 812 132 175 68 3930 8646 4248 9346
GA132VSD- 200 9 131 9 131 90 - 412 5.4 - 24.7 191 - 873 132 175 68 3930 8646 4248 9346
10.4 151 10.4 151 87 - 383 5.2 - 23. 0 184 - 812 132 175 68 3930 8646 4248 9346
13.5 196 13.5 196 81 - 325 4.9 - 19.5 172 - 689 132 175 68 3930 8646 4248 9346
GA160VSD- 125 3.5 51 3.5 51 97 - 572 5.8 - 34.3 206 - 1212 160 215 69 3930 8646 4248 9346
6.9 100 6.9 100 93 - 543 5.6 - 32.6 197 - 1151 160 215 69 3930 8646 4248 9346
8.6 125 8.6 125 90 - 501 5.4 - 30.1 191 - 1062 160 215 69 3930 8646 4248 9346
GA160VSD- 150 6 87 6 87 94 - 566 5.6 - 34.0 199 - 1199 160 215 69 3930 8646 4248 9346
8.6 125 8.6 125 90 - 501 5.4 - 30.1 191 - 1062 160 215 69 3930 8646 4248 9346
10.4 151 10.4 151 87 - 461 5.2 - 27.7 184 - 977 160 215 69 3930 8646 4248 9346
GA160VSD- 200 9 131 9 131 90 - 492 5.4 - 29.5 191 - 1042 160 215 69 3930 8646 4248 9346
10.4 151 10.4 151 87 - 461 5.2 - 27.7 184 - 977 160 215 69 3930 8646 4248 9346
13.5 196 13.5 196 82 - 394 4.9 - 23.6 174 - 835 160 215 69 3930 8646 4248 9346
